SPIRAL WOUND GASKET METALLIC
![SPIRAL WOUND GASKET METALLIC ABU DHABI RIGSTORE](https://flexitallic.com/wp-content/uploads/site//1/Flexitallic_Inventory_2018__Change_Gasket-1024x1024.jpg)

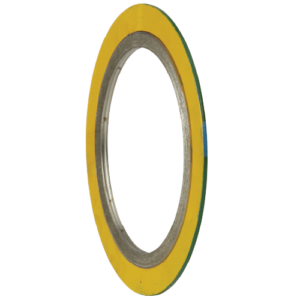

Metal-wound gasket designed to deliver a seal with the most dynamic recovery, with Graphite filler. The Gasket is available is a wide range of filler and facing materials, including SEL Graphite, PTFE, Thermiculite and Corriculite.
The high level of stored energy gives the Change gasket extremely high recovery. In a compression test against other gaskets, the Change Gasket recovered almost five-times better than a Kammprofile or DJ gasket.

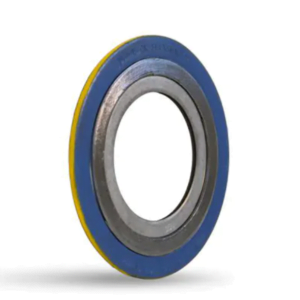

Available in Styles CG (winding with outer ring), CGI (Winding with inner and outer rings), RIR (winding with inner ring), R (winding only). Also available with pass bar configurations for heat exchanger applications. (Note, DJ (Double Jacketed) pass bar configuration is used).
Standard winding heights are .125″ and .177″. See Flexitallic Engineering for appropriate winding wire height.
Approval | API 6FB, TA Luft |
Brand | Change |
Flange Face | Raised & Flat Face, Flat Face (CG & CGI), Male x Female (R & RIR), Tongue and Groove (R & RIR) |
Media | Hazardous |
Maximum Temperature | 450°C / 842°F Hazardous |
Minimum Temperature | -240°C / -400°F |
Pressure | 431 Bars / 6251.14 PSI |
Pressure Class | 150, 300, 600, 1500, 2500, 400, 900 |
Pressure Rating PN | PN10, PN16, PN25, PN40, PN64, PN100, PN160, PN250 |
